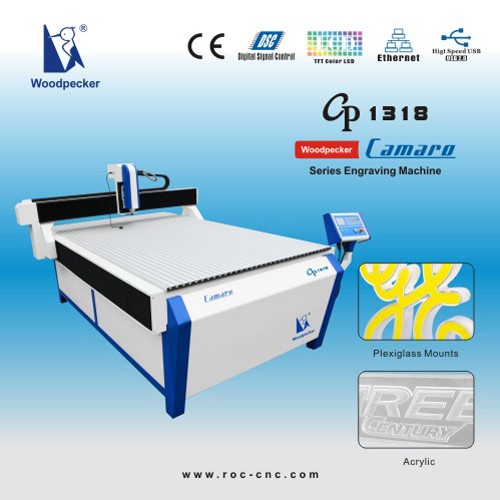

cnc cutter CP-1318 is focus on sign engraving, like chest tag engraving, nameplate engraving, outdoor logo engraving, lightbox plate cutting, and arts processing.
Description:
1.5kw spindle
step motor
circle rail
ball screw transmission
Applications:
PVC board, acrylic, chevron board engraving
Warranty: one year for the machine, 6 months for spindle.
Specifications:
|
Precision Repeatability
|
±0.03
|
mm
|
|
Spindle
|
1500
|
w
|
|
Spindle Rate
|
24000
|
r/min
|
|
Cutting Tool Diameter
|
Φ3.175/Φ4/Φ6/Φ8
|
mm
|
|
Max Movement Speed
|
7.2
|
m/min
|
|
Max Working Size (X, Y, Z)
|
1300*1800*110
|
mm
|
|
External Size
|
1790*2580*1400
|
mm
|
|
Consumption
|
2.5
|
kw
|
|
Power source
|
AC220V±10% 50HZ
|
v/hz
|
|
Wooden case packing CBM
|
2700*1910*1700
|
mm
|
|
GW/NW
|
630/750
|
kg
|
