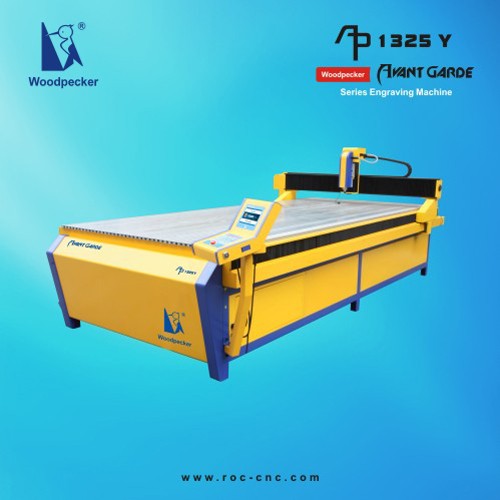

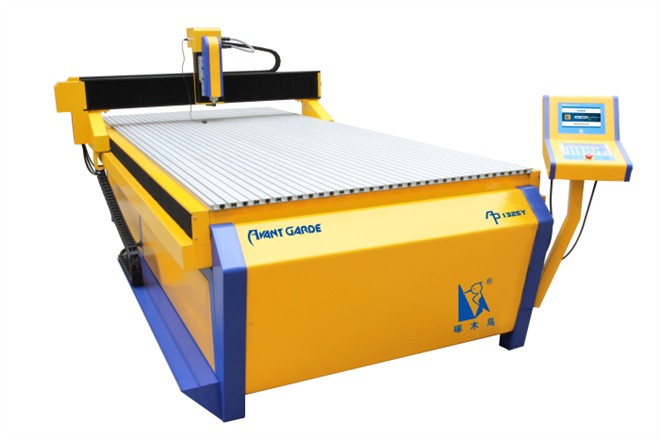

Wood engraving machine AP-1325Y:
Description:
Double Y-axis 3.7kw spindle
Step motor
Square rail
Applications:

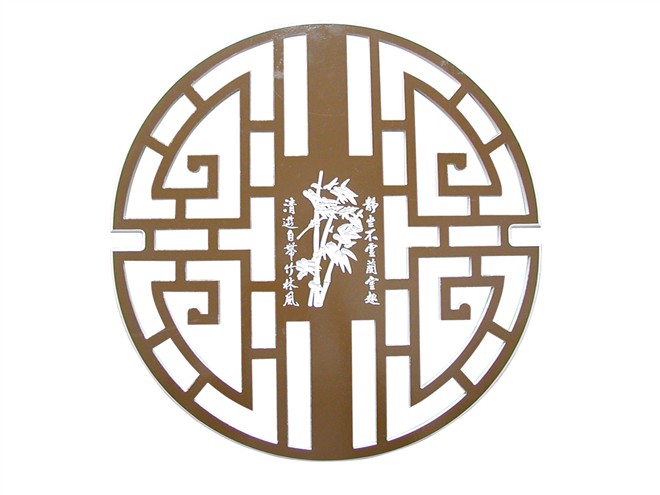

Carve hollow pattern on MDF and wood.

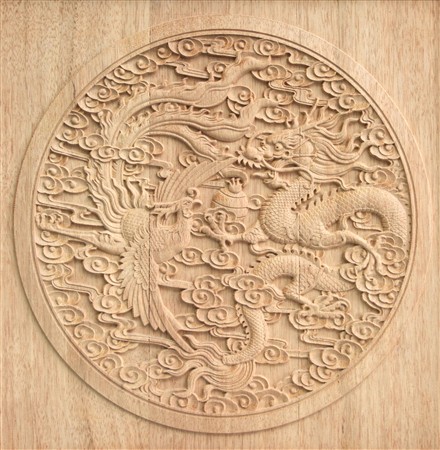

Carve wooden shallow relief
Milling surface and cutting of wooden plate
Specifications:
|
Precision Repeatability
|
±0.05
|
mm
|
|
Spindle
|
3700
|
w
|
|
Spindle Rate
|
24000
|
r/min
|
|
Cutting Tool Diameter
|
3.175/4/6/8/12.7
|
mm
|
|
Max Movement Speed
|
25
|
m/min
|
|
Max Working Size (X, Y, Z)
|
1300*2500*110
|
mm
|
|
External Size
|
1890*3500*1460
|
mm
|
|
Consumption
|
4.5
|
kw
|
|
Power source
|
AC220V±10% 50HZ
|
v/hz
|
|
Wooden case packing CBM
|
3650*2000*1820
|
mm
|
|
GW/NW
|
1080/1190
|
kg
|
Warranty: one year for the machine, 6 months for spindle.
